Knurled Brass Floor Mounted Door Stop

A knurled floor door stop with a compact brass body

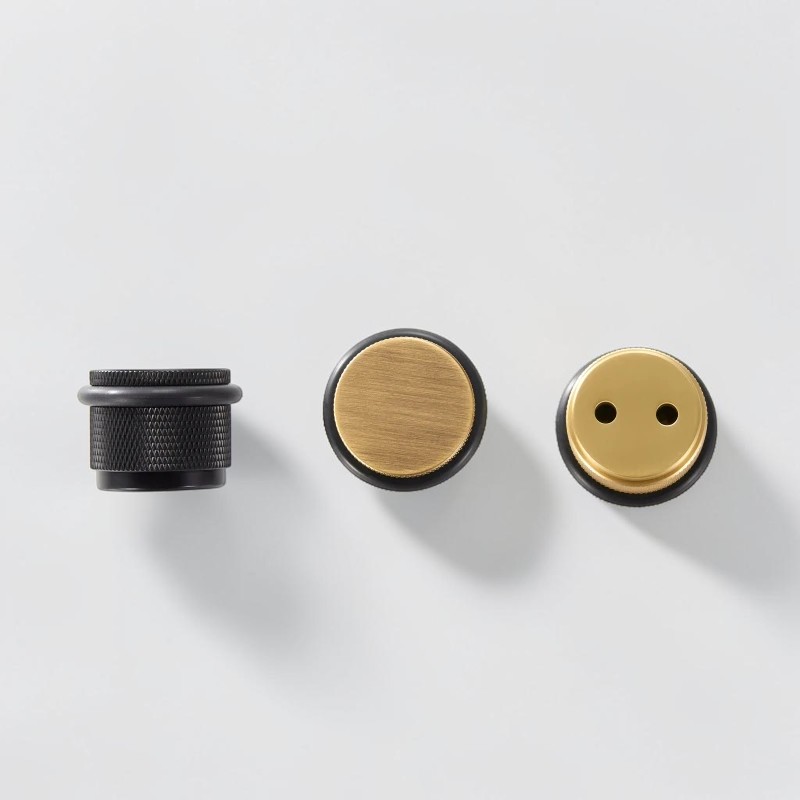

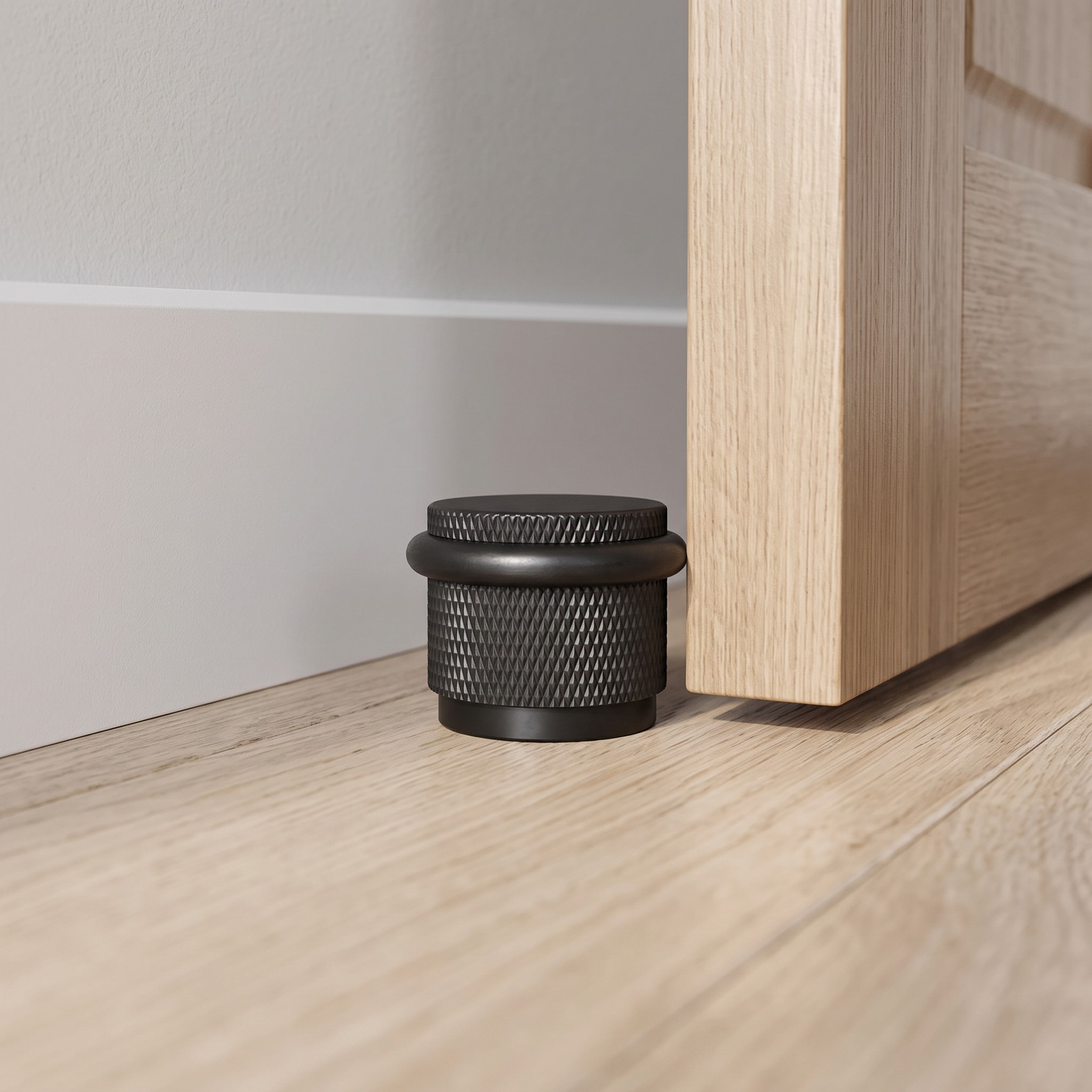

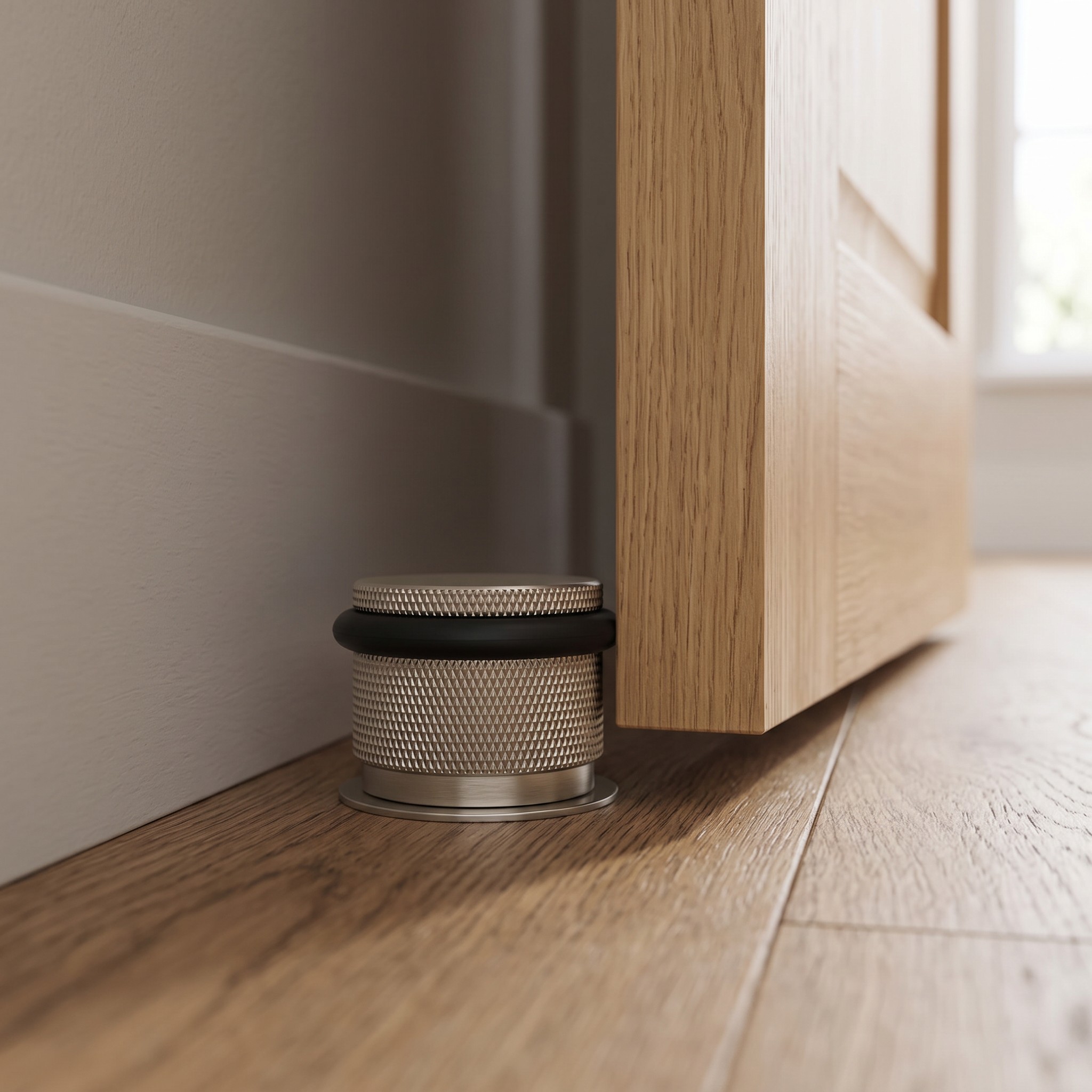

This knurled floor door stop combines a textured brass body with a black rubber bumper ring. Mount it where the door needs to stop so the bumper meets the door before the handle reaches the wall. Its low cylindrical shape adds a small, coordinated detail beside your door.

The diamond-pattern knurling gives the body a distinct texture, while the smooth round top keeps the profile simple. The rubber ring projects beyond the metal body to cushion contact. At approximately 1.18 in. (30 mm) high, this floor mounted stop suits locations where a compact fitting is preferred.

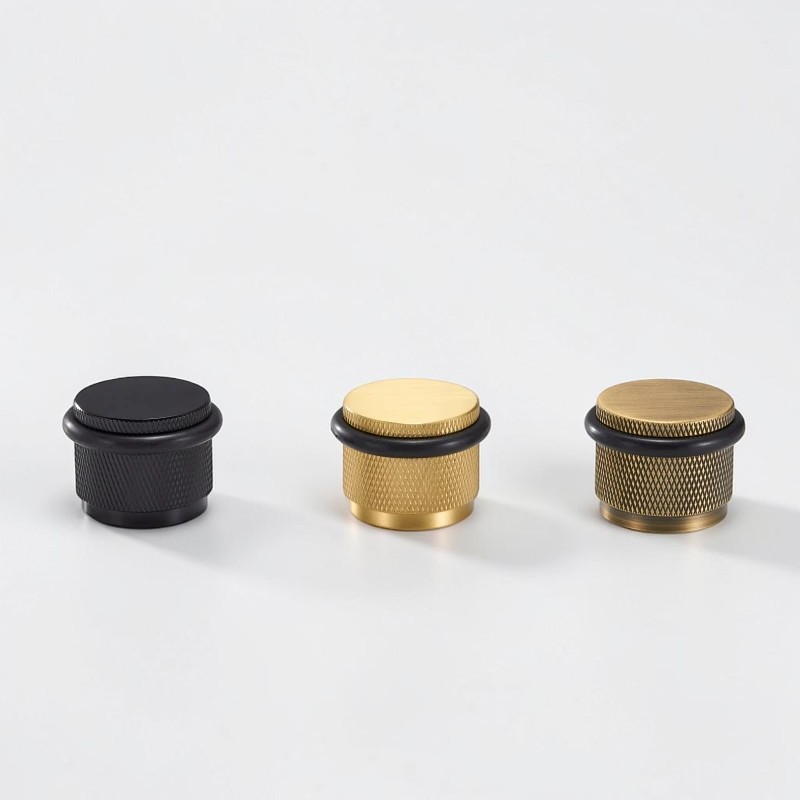

Choose from four finishes

Select an appearance that works with your handles, hinges and other visible fittings. Each option has the same knurled design and contrasting black bumper.

Aged Brass: a warm, darker brass tone with an antique appearance.
Brushed Brass: a lighter golden tone with a brushed surface.
Black Brass: a dark finish for coordinating with black hardware.
Champagne Bronze: a muted warm metallic tone.

Use the finish selector to view each option and its dimension image. Lighting and screen settings can affect how a finish appears.

Check the size and mounting position

The dimension drawing shows an overall height of 1.18 in. (30 mm), a maximum width of 1.38 in. (35 mm), and a base diameter of 1.26 in. (32 mm). Check the gap below your door and the intended contact point before ordering.

Position the stop so the door meets the rubber ring rather than the metal top. Choose fixings suitable for the floor material and keep the fitting out of the main walking path. See the Specifications and Installation tabs for measurements and fitting guidance.

Coordinate your door hardware

Pair this knurled floor door stop with complementary brass fittings for a consistent finish throughout a room. Browse our floor mounted door stops to compare shapes, or consider a knurled brass wall mounted door stop when a wall mounting position works better.

For routine care, wipe with a soft, damp cloth and dry gently. Avoid abrasive cleaners or scouring pads that could mark the finish.

Product type	Floor mounted door stop
Body material	Brass
Bumper	Black rubber ring
Body detail	Diamond-pattern knurling
Overall height	1.18 in. / approximately 30 mm
Maximum width	1.38 in. / approximately 35 mm
Base diameter	1.26 in. / approximately 32 mm
Available finishes	Aged Brass, Brushed Brass, Black Brass, Champagne Bronze

Floor mounting guidance

Check the door clearance and choose a position where the rubber ring will contact the door before the handle reaches the wall.
Check the floor for concealed pipes, cables or underfloor heating before drilling. Keep the stop clear of the main walking path.
Use the mounting base to mark the fixing positions. Choose screws and, where needed, anchors suitable for the floor construction; wood and concrete require different fixings.
Secure the base and assemble the stop. Open the door slowly to confirm contact with the rubber bumper and check that the fitting is firm.

If the floor construction or fixing method is uncertain, ask a qualified installer. Clean with a soft, damp cloth and dry gently.
