4 Gang 1 Rotary Dimmer & 3 Duplex Outlets

4 Gang 1 Rotary Dimmer & 3 Duplex Outlets with a Solid Brass Wall Plate

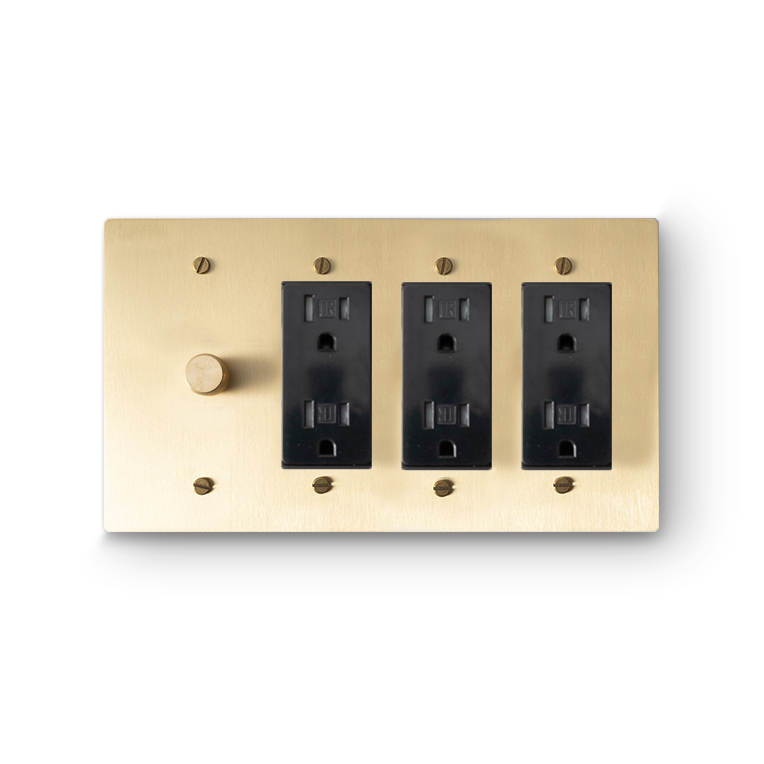

Group one rotary dimmer with three duplex outlets across a 4-gang Solid brass wall plate. The round control leads the panel on the left, with three receptacle modules following it.

• Configuration: 4-gang — Rotary dimmer; 15 A duplex outlet; 15 A duplex outlet; 15 A duplex outlet
• Plate material: Solid brass in every finish
• Plate size: 8.27 × 4.72 in
• Plate finishes: Brass
• Plastic insert colors: Black; availability depends on the selected assembly
• Finish selection: Choose the compatible plate, screw and component finishes shown in the selectors

Choose the Right Arrangement

This arrangement concentrates the plate’s device positions on outlets while retaining one dimming control. Compare it with the all-outlet panel if no adjustable lighting position is needed, or the two-dimmer/two-outlet mix when two dimmers are specified.

This 4-gang plate has the following arrangement from left to right: Rotary dimmer; 15 A duplex outlet; 15 A duplex outlet; 15 A duplex outlet. Gang count describes the device positions on the plate. Choose the actual switch, dimmer or outlet function required by your electrical plan.

Coordinate Your Finishes

The plate, exposed screws and visible controls or inserts each contribute to the finished appearance. Compare the complete fitting in the photographs alongside your cabinet hardware, wall color and other interior finishes. The selectors show the compatible component options for the chosen plate.

Every wall plate is made from solid brass. Finish names describe its appearance; Steel is a finish on brass. White and Cream plastic, where offered, are separate colors. Changing the finish keeps the product’s module arrangement unchanged.

Check the Specifications tab for the applicable electrical ratings and mounting measurements, and the Installation tab for available installation information. Have your electrician confirm the required circuit function, load and electrical box compatibility before ordering.

For a different function or module mix, compare 4 Gang 2 Rotary Dimmers & 2 Duplex Outlets and 4 Gang 4 Duplex Outlets. Select the arrangement required for each location, then coordinate the finishes across your project.
