Free shipping on all US orders
Made from solid brass — not cheap plated alternatives
Manufacturing since 2018
Price range: $125.20 through $143.10

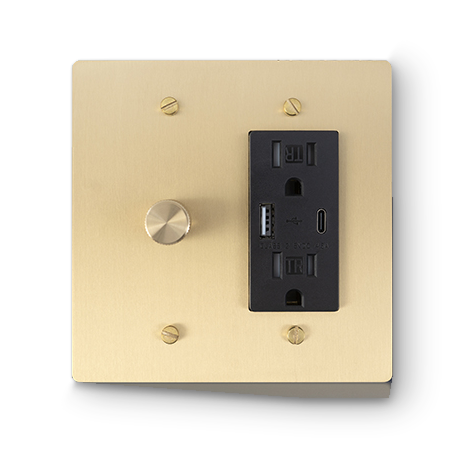

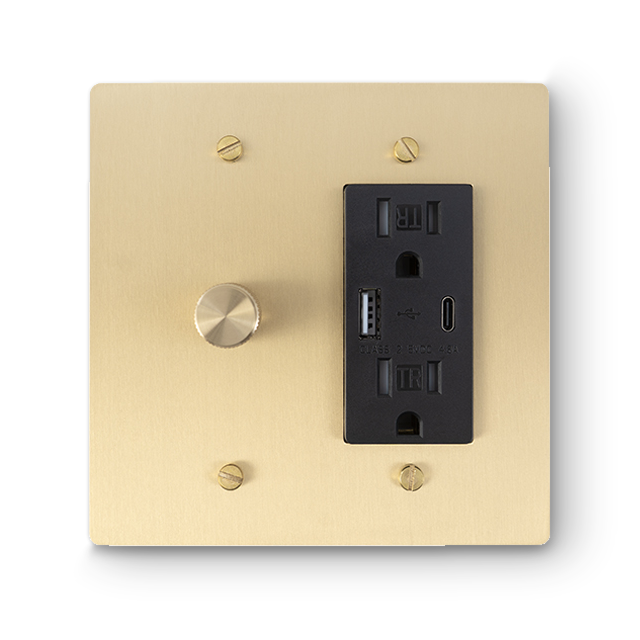

2 Gang Rotary Dimmer & USB-A / USB-C Outlet with a Solid brass wall plate, 4.72 × 4.72 in. Combines 1 single-pole rotary dimmer and 1 USB-A / USB-C outlet in the photographed left-to-right arrangement. Select matching plate and component finishes from the available assemblies, and review the Specifications tab for electrical and mounting details.
Share this

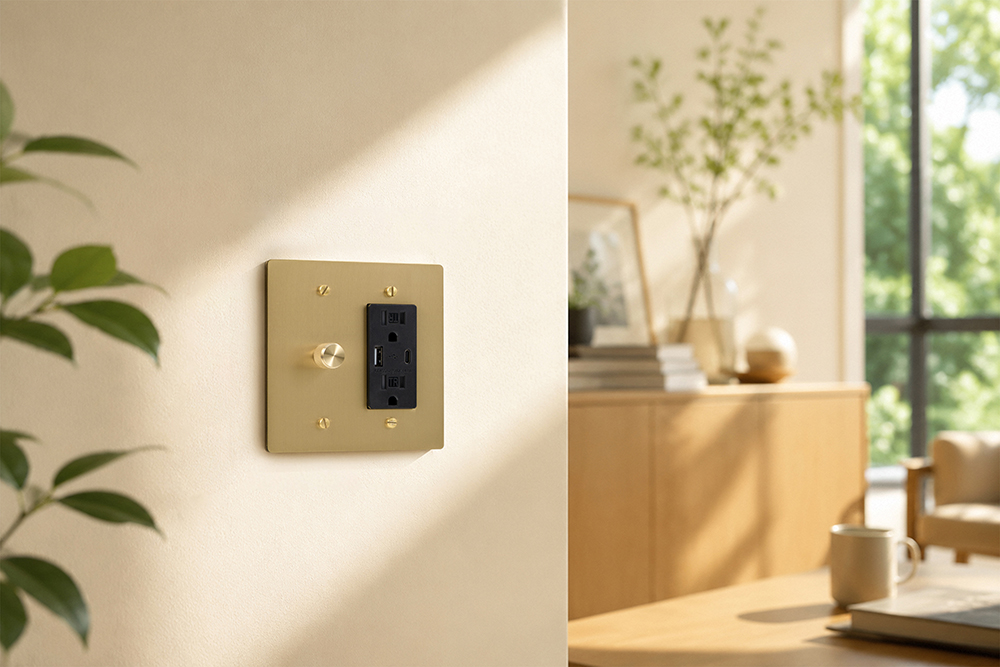

Bring adjustable lighting, USB-A and USB-C charging, and a receptacle together in one 2-gang decorative fitting. This Solid brass wall plate places the rotary dimmer on the left and the charging outlet on the right.
The arrangement is worth comparing for a planned bedside or work-area fitting that needs both lighting adjustment and cable connections. Choose it by the actual module combination and stated charging output. The nearby dimmer does not establish how the charging outlet is wired or powered.
This 2-gang plate has the following arrangement from left to right: Rotary dimmer; USB-A / USB-C outlet. Gang count describes the device positions on the plate. Choose the actual switch, dimmer or outlet function required by your electrical plan.
The plate, exposed screws and visible controls or inserts each contribute to the finished appearance. Compare the complete fitting in the photographs alongside your cabinet hardware, wall color and other interior finishes. The selectors show the compatible component options for the chosen plate.
Every wall plate is made from solid brass. Finish names describe its appearance; Steel is a finish on brass. White and Cream plastic, where offered, are separate colors. Changing the finish keeps the product’s module arrangement unchanged.
Check the Specifications tab for the applicable electrical ratings and mounting measurements, and the Installation tab for available installation information. Have your electrician confirm the required circuit function, load and electrical box compatibility before ordering.
For a different function or module mix, compare 2 Gang Rotary Dimmer & Duplex Outlet and 2 Gang Rotary Dimmer & GFCI Outlet. Select the arrangement required for each location, then coordinate the finishes across your project.
| Configuration |
2-gang |
|---|---|
| Plate dimensions |
4.72 × 4.72 in |
| Module layout (left to right) |
Rotary dimmer · USB-A / USB-C outlet |
| Mounting hole spacing |
3.29 in |
| Plate material |
Solid brass |
| Certification |
UL-certified electrical modules |
| Dimmer — Supply voltage |
110–120 V AC |
| Dimmer — Frequency |
50/60 Hz |
| Dimmer — Circuit type |
Single-pole |
| Dimmer — Dimming technology |
TRIAC |
| Dimmer — Dimmable LED load |
3–150 W |
| Dimmer — Incandescent / halogen load |
40–250 W |
| Dimmer — UL file |
E511941 |
| Dimmer — Thermal protection |
Overheat protection |
| USB outlet — Supply voltage |
120 V AC |
| USB outlet — Rated current |
15 A |
| USB outlet — USB ports |
1 × USB-A and 1 × USB-C |
| USB outlet — Total USB output |
5 V DC, 4.8 A combined |
| Plate fixing points |
4 |
Installation by a qualified electrician is required. Follow the instructions supplied with each electrical module.
Wipe with a soft, dry cloth. Do not use abrasive cleaners.
